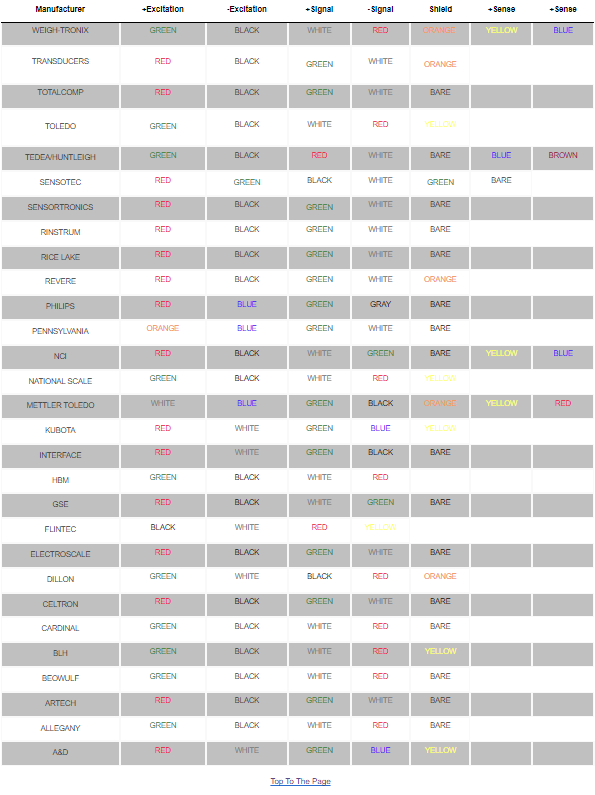

Load Cell Wiring Color Guide
Manufacturer |
+Excitation |
-Excitation |
+Signal |
-Signal |
Shield |
+Sense |
+Sense |
||
|---|---|---|---|---|---|---|---|---|---|
|
Weigh-Tronix |
GREEN |
BLACK |
White |
RED |
Orange  |
YELLOW |
BLUE |
||
|
Transducers |
RED |
BLACK |
GREEN |
White |
ORANGE |
||||
|
Totalcomp |
RED |
BLACK |
GREEN |
White |
bare |
|
|
||
|
Toledo |
GREEN |
BLACK |
White |
RED |
YELLOW |
||||
|
Tedea/Huntleigh |
GREEN |
BLACK |
RED |
White |
bare |
BLUE |
Brown |
||
|
Sensotec |
RED |
GREEN |
BLACK |
White |
GREEN |
bare |
|||
|
Sensortronics |
RED |
BLACK |
GREEN |
White |
bare |
|
|
||
|
Rinstrum |
RED |
BLACK |
GREEN |
White |
bare |
||||
|
Rice Lake |
RED |
BLACK |
GREEN |
White |
bare |
|
|
||
|
Revere |
RED |
BLACK |
GREEN |
White |
orange |
||||
|
Philips |
RED |
blue |
green |
gray |
bare |
|
|
||
|
Pennsylvania |
orange |
blue |
green |
white |
bare |
||||
|
NCI |
RED |
black |
white |
green |
bare |
yellow |
blue |
||
|
National Scale |
green |
black |
white |
RED |
yellow |
||||
|
Mettler Toledo |
white |
blue |
green |
black |
orange |
yellow |
RED |
||
|
Kubota |
RED |
white |
green |
blue |
yellow |
||||
|
Interface |
RED |
white |
green |
black |
bare |
|
|
||
|
HBM |
green |
black |
white |
RED |
|
|
|
||
|
GSE |
RED |
black |
white |
green |
bare |
|
|
||
|
Flintec |
black |
white |
RED |
yellow |
|||||
|
Electroscale |
RED |
black |
green |
white |
bare |
|
|
||
|
Dillon |
green |
white |
black |
RED |
orange |
||||
|
Celtron |
RED |
black |
green |
white |
bare |
|
|
||
|
Cardinal |
green |
black |
white |
RED |
bare |
||||
|
BLH |
green |
black |
white |
red |
yellow |
|
|
||
|
Beowulf |
green |
black |
white |
red |
bare |
||||
|
Artech |
red |
black |
green |
white |
bare |
|
|
||
|
Allegany |
green |
black |
white |
red |
bare |
||||
|
A&D |
red |
white |
green |
blue |
yellow |
|
|
